The Ultimate Security Family
The Vcare VS-30 Series is a family of Crash Rated Bollards designed for Hostile Vehicle Mitigation (HVM) and high-security perimeter protection applications. Our products have been impact tested in accordance with PAS 68, ISO IWA 14-1 and ISO 22343 standards, providing protection equivalent to K4 and M30 vehicle impact ratings.
The VS-30 Series is available in Fixed Bollard, Single Fixed Bollard, Automatic Retractable Bollard, Removable Bollard and Shallow Mount Bollard configurations, providing effective vehicle access control while maintaining pedestrian accessibility and architectural aesthetics.
Suitable for government facilities, airports, transportation hubs, military installations, critical infrastructure and commercial developments, the VS-30 Series delivers proven crash-rated protection against unauthorised vehicle intrusion.
VS-30-(F), Fixed Bollard
The VS-30-(F)-450 Fixed Bollard is a cost-effective Crash Rated Bollard designed for hostile vehicle mitigation and permanent vehicle access control applications. It is available with galvanised finish, RAL colour coating or stainless steel sleeve options to suit different architectural requirements.
The VS-30-(F)-SM Shallow Mount Fixed Bollard requires a foundation depth of only 200 mm, making it ideal for locations where underground services restrict excavation depth.
The VS-30-(F)-400S Single Fixed Bollard is a Crash Rated Shallow Mount Bollard tested in accordance with ISO 22343-1 and IWA 14-1 standards, providing protection equivalent to K4 and M30 vehicle impact ratings while requiring minimal foundation depth.
VS-30-(A), Auto Bollard
The VS-30-(A) Automatic Retractable Bollard is a hydraulically operated Crash Rated Bollard designed for hostile vehicle mitigation and secure vehicle access control applications. It provides high levels of perimeter protection whilst allowing authorised vehicle and pedestrian access when required.
Operated by a customised Hydraulic Power Unit (HPU) and control system, the VS-30-(A) is designed to provide protection equivalent to K4 and M30 vehicle impact ratings in accordance with PAS 68 and IWA 14-1 standards, making it suitable for government facilities, airports, transportation hubs, commercial developments and other high-security sites.
VS-30-(R), Removable Bollard
The VS-30-(R) Series includes both the VS-30-(R)-450 Removable Bollard and the VS-30-(R)-SM Shallow Mount Removable Bollard, providing flexible vehicle access control without compromising security performance.
Designed for hostile vehicle mitigation and high-security perimeter protection, these Crash Rated Removable Bollards can be removed when authorised access is required and reinstated when protection is needed. The VS-30-(R)-450 is tested in accordance with PAS 68 standards, while the VS-30-(R)-SM features a shallow foundation depth of only 200 mm and is tested in accordance with ISO 22343-1 and IWA 14-1 standards, providing protection equivalent to K4 and M30 vehicle impact ratings.
Suitable for maintenance access routes, emergency access points, event locations, government facilities, transportation hubs and other high-security applications requiring both security and operational flexibility.
VS-30-(F)-450, Fixed Bollards
VS-30-(F)-450 - Product Overview

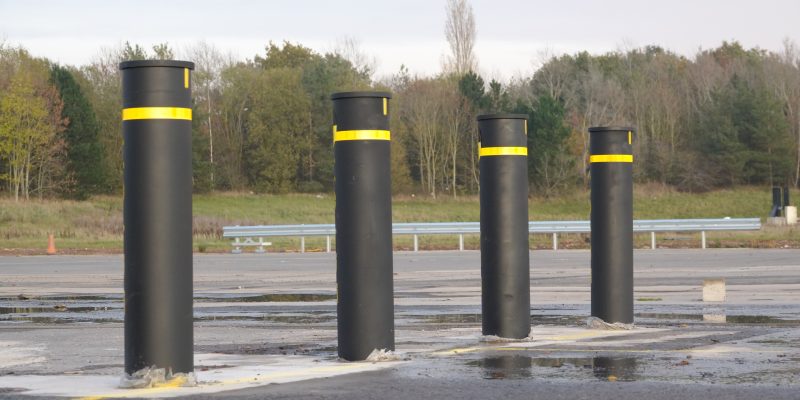

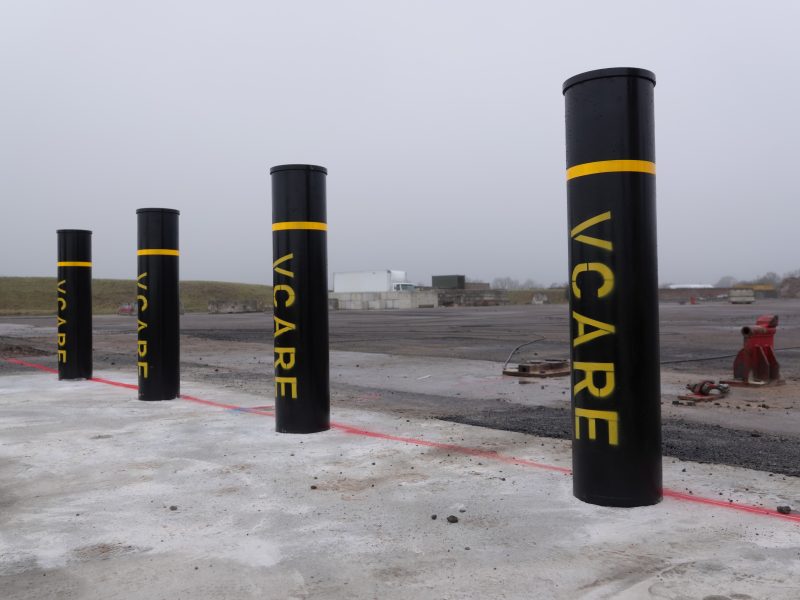

The Crash Rated, Fixed VS-30-(F)-450 bollard is tall and slim; offering a galvanised finish as standard. Alternatively, the bollard can be coated with any RAL colour specified or fitted with an aesthetic sleeve. This product provides a cost effective solution for perimeter security requirements and meets the security rating for most perimeter security projects.

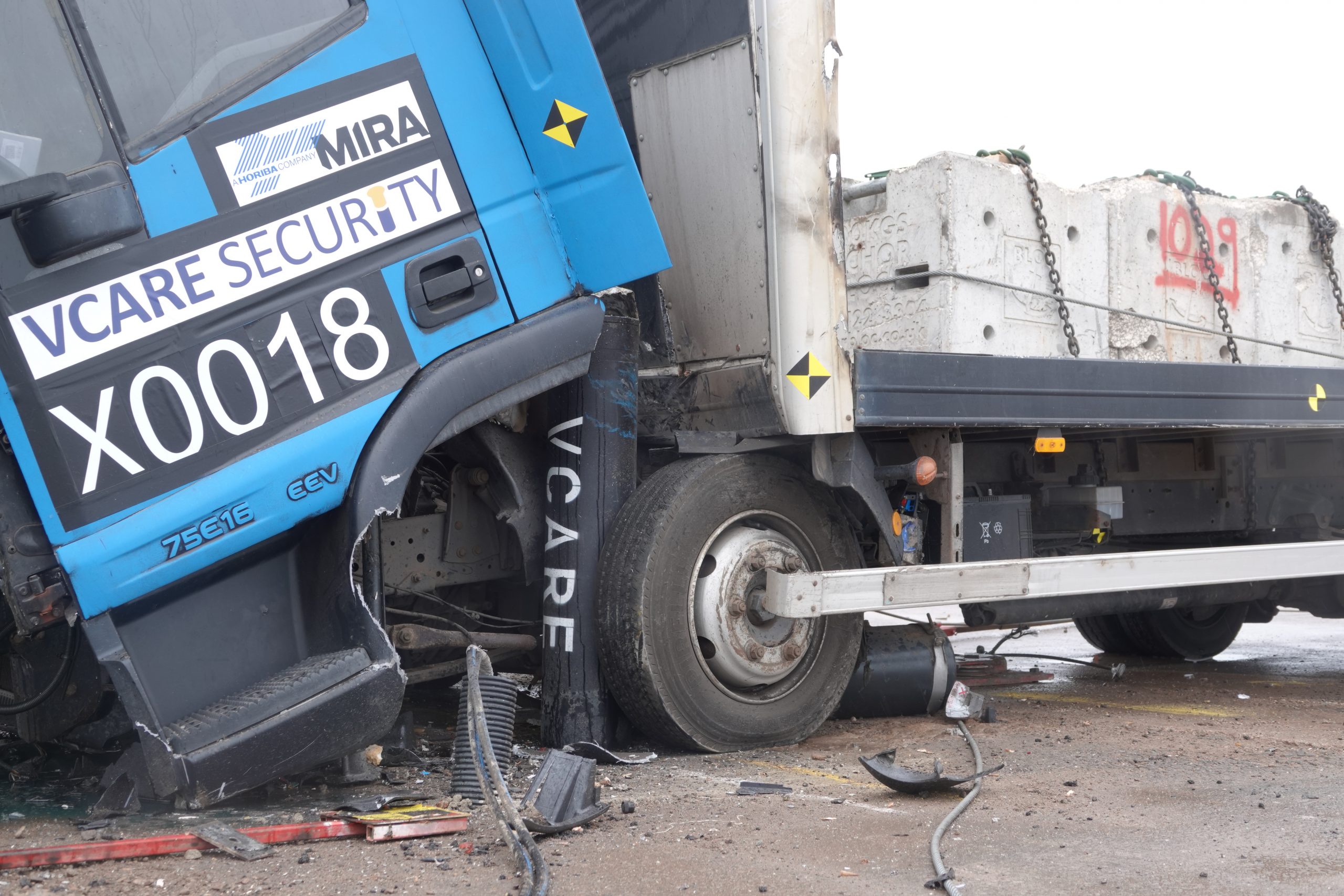

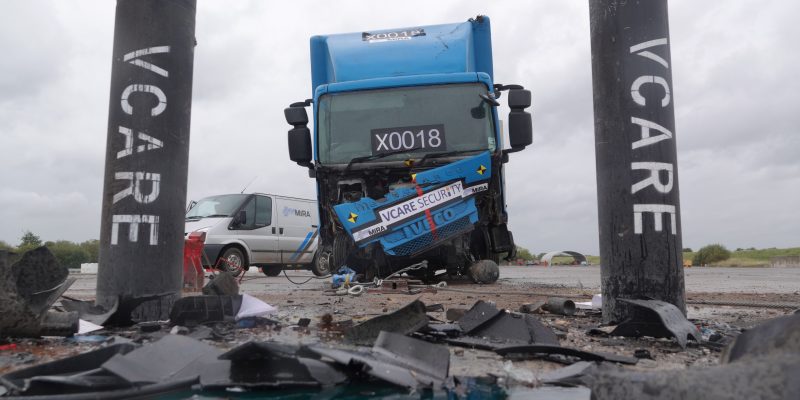

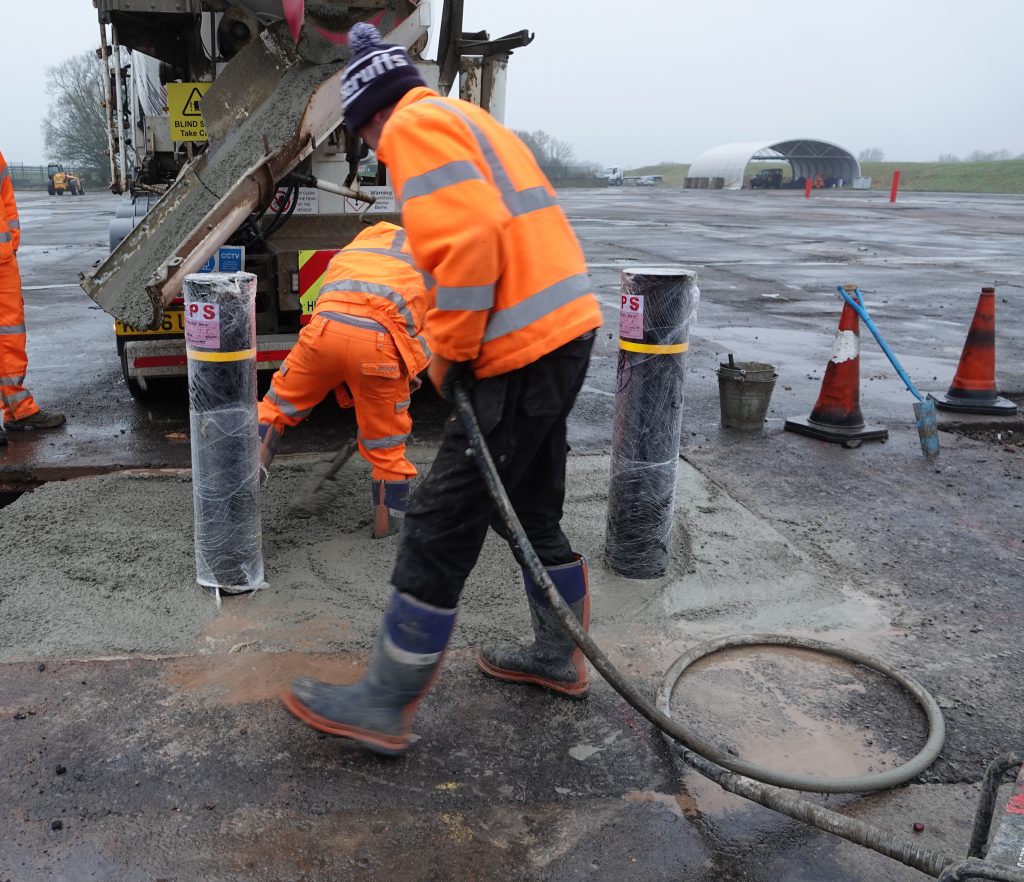

The Vcare Security VS-30-(F)-450 is a fixed bollard successfully impact tested to 48 km/h with a 7,500 kg vehicle. This product must be installed within an approved, reinforced concrete foundation. For sites requiring perimeter protection with limited excavation depth please consider our VS-30-(F)-SM, Shallow Mount Bollards.
The Benefits
Impact tested in accordance with BSI PAS 68:2013, IWA14-1:2013 and equivalent to K4 or M30 standards. Installation depth of 450mm only makes civil work simpler with reduced cost.
Bollard can be supplied with Installation included or simply Supply Only.
SECURITY RATING
Meets the BSI PAS 68 rating when installed to the PAS 69 certification.
V/7,500(N2)/48/90:0/0
FINISHES
Available in a variety of finishes:
Galvanised, painted to any specified RAL colour or fitted with an aesthetic sleeve to suit client requirements.
VS-30-(F)-450 Fixed Bollard Characteristics
- Bollard Diameter: 219 mm
- Height Above Ground: 1,025 mm
- Foundation Depth: 450 mm
- Finishes Available: Galvanised. Painted to a specified RAL colour or fitted with an aesthetic sleeve
- Full PAS 68 Designation: V/7500(N2)/48/90:0.0/0.0
Catalogue

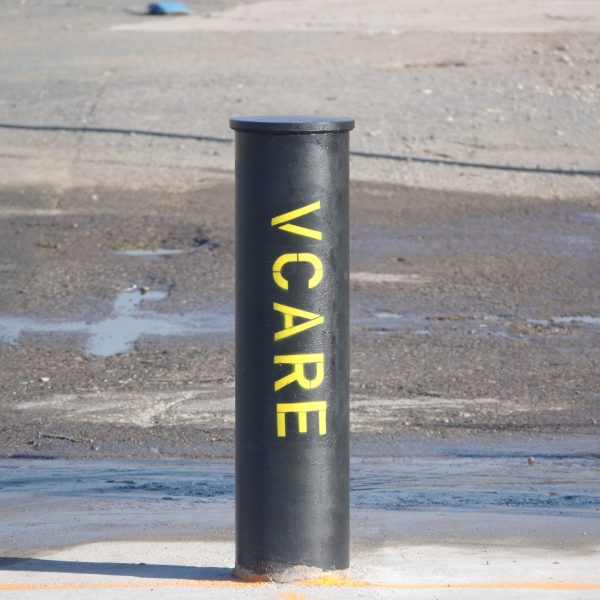

VS-30-(F)-400S, Single Fixed Bollards
VS-30-(F)-400S, Single Bollard - Product Overview
The Crash Rated VS-30-(F)-400S Single Fixed Bollard is designed for hostile vehicle mitigation and perimeter security applications where individual protection points are required. Its shallow foundation design minimises excavation works while providing a practical solution for sites with underground services or restricted installation depths.

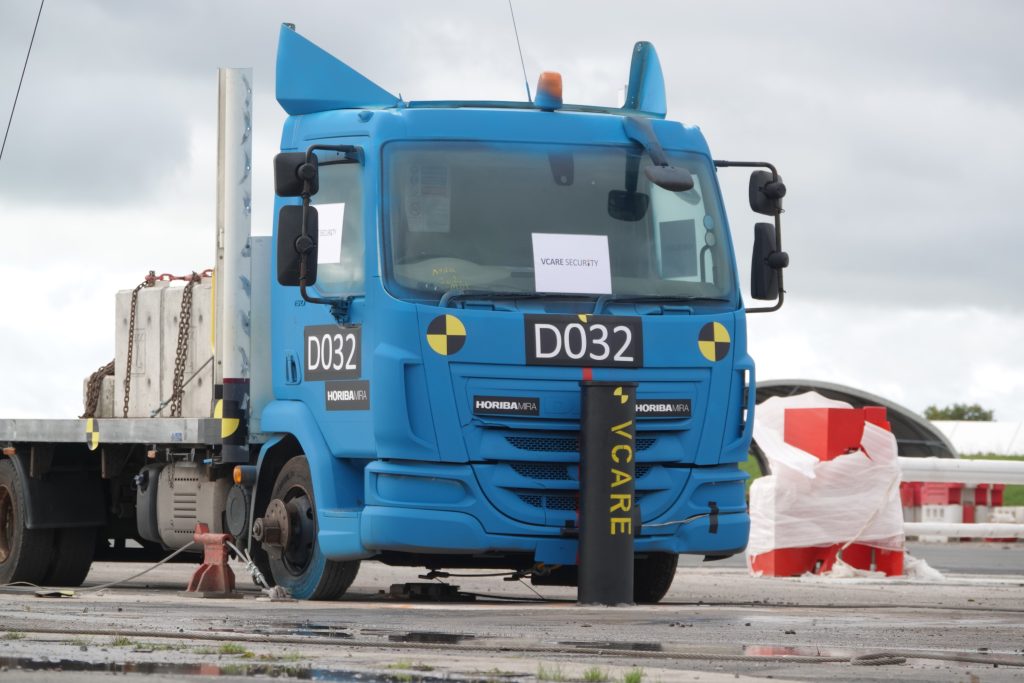

The Vcare Security VS-30-(F)-400S is a single bollard successfully impact tested in accordance with ISO 22343-1:2023 and IWA 14-1 standards. Requiring a foundation depth of only 400mm, it is suitable for protecting building entrances, utility infrastructure, pedestrian zones, government facilities and critical infrastructure against unauthorised vehicle intrusion.
The Benefits
Impact tested in accordance with ISO 22343-1:2023 and IWA 14-1 standards, providing protection equivalent to K4 and M30 vehicle impact ratings. The shallow foundation depth of only 400mm reduces excavation requirements and simplifies installation.
The VS-30-(F)-400S Single Fixed Bollard can be supplied with installation included or on a supply-only basis.
SECURITY RATING
Meets the ISO 22343-1:2023 rating when installed to the PAS 69 certification.
V/7,200(N2A)/48/90:0.0
FINISHES
Available in a variety of finishes:
Galvanised, painted to any specified RAL colour or fitted with an aesthetic sleeve to suit client requirements.
VS-30-(F)-400S, Single Fixed Bollard Characteristics
- Bollard Diameter: 219 mm
- Height Above Ground: 900 mm
- Foundation Depth: 400 mm
- Finishes Available: Galvanised. Painted to a specified RAL colour or fitted with an aesthetic sleeve
- Full ISO 22343-1:2023 Designation: V/7200[N2A]/48/90:0.0/5.1
VS-30-(F) Shallow Mount Fixed bollards
VS-30-(F)-SM, Shallow Mount Fixed Bollards
The Vcare VS-30-(F)-SM, Shallow Mount Fixed Bollards is part of the ultimate security bollard family. This product is designed to protect at the PAS68 level, and is able to stop a fully laden 7.5 tons vehicle travelling at 30mph. This shallow mount fixed bollard only requires a civil installation depth of 200mm.
Traditional Crash Rated Bollards require sizeable and deep foundations. While these are appropriate for many situations, there are often underground services and structures which prevent the use of these deep products.
The Vcare shallow mount system is a revolutionary engineering development and sits at the cutting edge of industry technology. Shallow Mount design enables us to provide high security products which can be installed at a fraction of the depth underground that traditional products require.
Shallow mount technology is the latest innovation in physical security
and is proving invaluable within city centres, outside airports, skyscrapers and other places where underground services, car parks and basements prevent standard depth bollards to be installed.
Characteristics
- Product: VS-30-(F)-SM
- Diameter: 219mm
- Height: 1050 mm
- Finish Foundation: Sherardised black, or stainless steel sleeve.
- Foundation Depth: 200mm
Technical specifications
Testing Criteria: BSI PAS68:2013 & IWA14-1:2013
Vehicle weight: 7,500kg
Vehicle speed: 48km/h (30mph)
Full PAS 68 Designation: V/7500(N2)48/90:0.0/9.6
The Benefits
Impact tested in accordance with BSI PAS 68:2013, IWA14-1:2013 and equivalent to ASTM (DOS) K4 tested Modular design makes service and maintenance especially straight forward. Depth of 200mm only significantly reduce the cost of installation.
Bollard can be supplied with Installation included or simply Supply Only.
VS-30-(A), Auto Bollards
The VS-30-(A), Auto Bollard is a hydraulically operated fully automatic bollard. When needed, it can be fully retracted to the ground with flush surface for pedestrian or vehicle access.
Characteristics
- Product: VS-30-(A) Auto Bollards
- Diameter: 219mm
- Height: 1050mm
- Finish Foundation: Sherardised black, or stainless steel sleeve.
- Depth: 1670mm
Technical specifications
Testing Criteria: BSI PAS 68:2013 & IWA14-1:2013
Vehicle weight: 7,500kg
Vehicle speed: 48km/h (30mph)
Full PAS 68 Designation: V/7500(N2)48/90:0.0/0.0
219mm Diameter on Sherardised finish.
230mm Diameter on stainless steel finish (sleeve)
Options and Extras
- Stainless steel sleeve
- Intelligent control system available
- Auto-rise
- Traffic lights
- LED lights
- Synchronization controls
Catalogue
VS-30-(M), Manual Retractable Bollards
The VS-30-(M), Manual Retractable Bollard is a manually operated bollard. It can be fully retracted to the ground with flush surface for pedestrian or vehicle access with no electrical power required.
Characteristics
- Product: VS-30-(M), Manual Retractable Bollards
- Diameter: 219mm
- Height: 1050mm
- Finish Foundation: Sherardised black, or stainless steel sleeve.
- Depth: 1670mm
Technical specifications
Testing Criteria: BSI PAS 68:2013 & IWA14-1:2013
Vehicle weight: 7,500kg
Vehicle speed: 48km/h (30mph)
Full PAS 68 Designation: V/7500(N2)48/90:0.0/0.0
219mm Diameter on Sherardised finish.
230mm Diameter on stainless steel finish (sleeve)
Options and Extras
- Painted in preferred RAL colour
- Stainless steel sleeve
